Product Summary

The MRFE6S9045NR1 is a RF Power Field Effect Transistor. It is designed for broadband commercial and industrial applications with frequencies up to 1000 MHz.

Parametrics

Absolute maximum ratings: (1)Drain-Source Voltage:- 0.5V, +66Vdc; (2)Gate-Source Voltage:- 0.5V, +12Vdc; (3)Maximum Operation Voltage:32V, +0Vdc; (4)Storage Temperature Range:- 65℃ to +150℃; (5)Case Operating Temperature:150℃; (6)Operating Junction Temperature:225℃.

Features

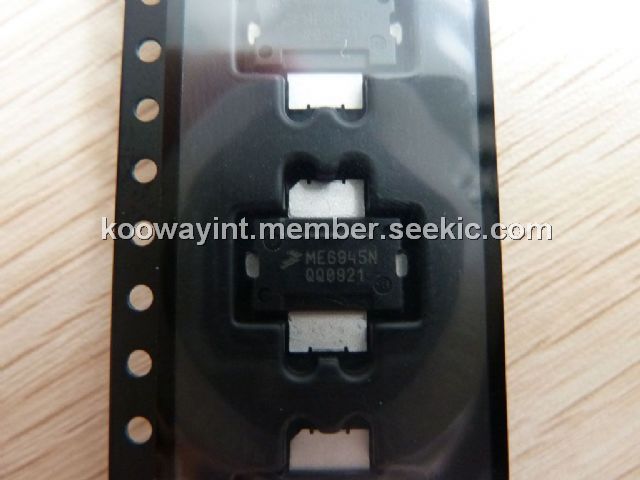

Features: (1)Characterized with Series Equivalent Large-Signal Impedance Parameters; (2)Integrated ESD Protection; (3)225℃ Capable Plastic Package; (4)RoHS Compliant; (5)In Tape and Reel. R1 Suffix = 500 Units per 24 mm, 13 inch Reel.

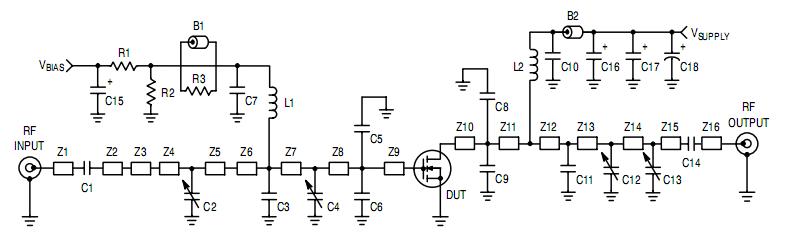

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MRFE6S9045NR1
MRFE6S9045NR1
Freescale Semiconductor
Transistors RF MOSFET Power HV6E 45W NI270-2 FET
Data Sheet
0-387: $8.32
387-500: $8.32
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MRFE6P3300HR3
MRFE6P3300HR3
Freescale Semiconductor
Transistors RF MOSFET Power HV6 900MHZ 300W NI860ML
Data Sheet
0-188: $84.61
188-250: $84.61
MRFE6P3300HR5
MRFE6P3300HR5
Freescale Semiconductor
Transistors RF MOSFET Power HV6 900MHZ 300W NI860ML
Data Sheet
Negotiable
MRFE6P9220HR3
MRFE6P9220HR3
Freescale Semiconductor
Transistors RF MOSFET Power HV6E 900MHZ 200W NI860ML
Data Sheet
0-188: $54.45
188-250: $54.45
MRFE6P9220HR5
MRFE6P9220HR5
Freescale Semiconductor
Transistors RF MOSFET Power HV6E 900MHZ 200W NI860ML
Data Sheet
Negotiable
MRFE6S8046GNR1
MRFE6S8046GNR1
Freescale Semiconductor
Transistors RF MOSFET Power HV6E 45W GSM
Data Sheet
0-271: $12.64
271-500: $9.12
MRFE6S8046NR1
MRFE6S8046NR1
Freescale Semiconductor
Transistors RF MOSFET Power HV6E 45W GSM
Data Sheet
0-271: $12.64
271-500: $9.12
