Product Summary

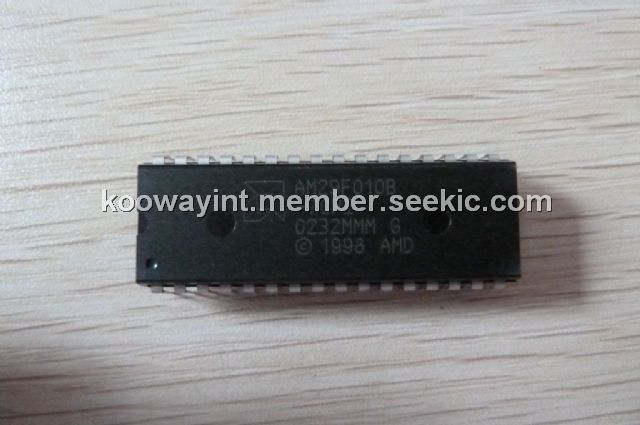

The AM29F010B-70PI is a 1 Megabit (128 K x 8-bit) CMOS 5.0 Volt-only, Uniform Sector Flash Memory. It is is designed to be programmed in-system with the standard system 5.0 Volt VCC supply.
Parametrics
Absolute maximum ratings: (1)Storage Temperature Plastic Packages:–65℃ to +125℃; (2)Ambient Temperature with Power Applied:–55℃ to +125℃; (3)Voltage with Respect to Ground:VCC:–2.0 V to +7.0 V, A9:–2.0 V to +13.0 V,All other pins:–2.0 V to +7.0 V; (4)Output Short Circuit Current:200 mA.
Features
Features: (1)Single power supply operation; (2)Manufactured on 0.32 μm process technology; (3)High performance:45 ns maximum access time; (4)Low power consumption; (5)Flexible sector architecture:Eight 16 Kbyte sectors,Any combination of sectors can be erased,Supports full chip erase; (6)Erase Suspend/Resume:Supports reading data from a sector not being erased; (7)Minimum 1 million erase cycles guaranteed per sector; (8)20-year data retention at 125℃:Reliable operation for the life of the system.

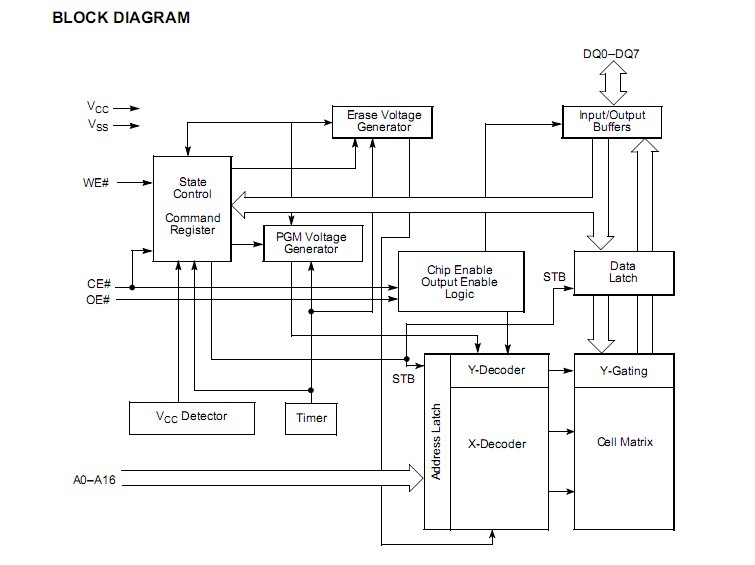

Diagrams
 |
