Product Summary
The Enhanced Digital Switch is an Enhanced Digital Switch. It is designed for switching PCM-encoded voice or data, under microprocessor control, in digital exchanges, PBXs and any ST-BUS/MVIP environment.
Parametrics
Absolute maximum ratings: (1)VDD - VSS:-0.3V to 7V; (2)Voltage on Digital Inputs:VSS-0.3V to VDD+0.3V; (3)Voltage on Digital Outputs:VSS-0.3V to VDD+0.3V; (4)Current at Digital Outputs:40 mA; (5)Storage Temperature:-65℃ to +150℃; (6)Package Power Dissipation:2W.
Features
Features: (1)256 x 256 channel non-blocking switch ; (2)Programmable frame integrity for wideband channels; (3)Automatic identification of ST-BUS/GCI interface backplanes; (4)Per channel tristate control; (5)Patented message mode; (6)Non-multiplexed microprocessor interface; (7)Single +5 volt supply; (8)Pin compatible with MT8980 device.

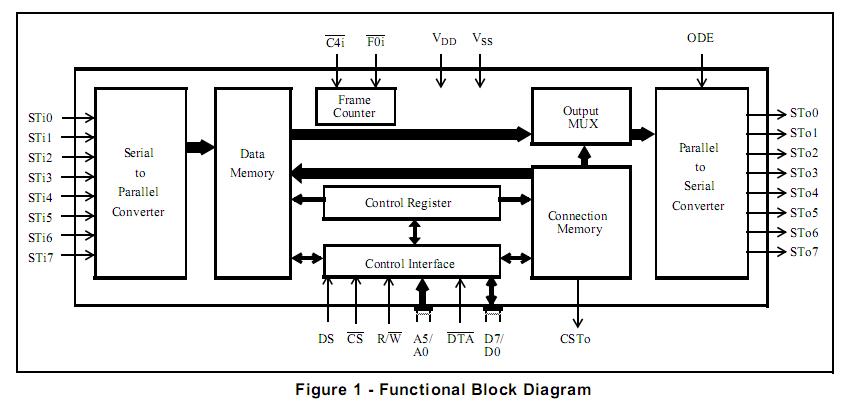

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

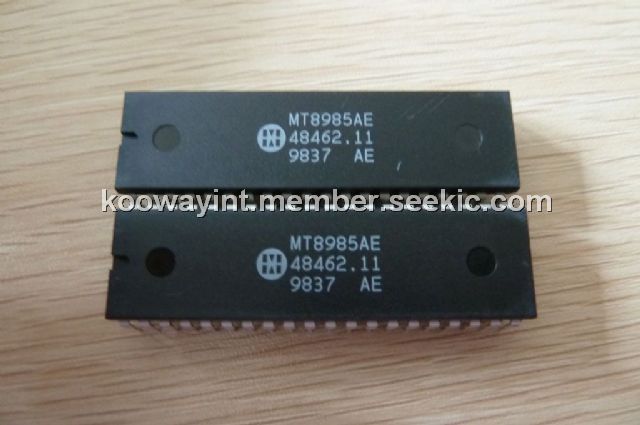

 MT8985AE |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
MT8985 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
MT8985AE |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
MT8940AE |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
MT8940AC |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
MT8931C |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
MT8930C |
Other |
|
Data Sheet |
Negotiable |
|
||||
