Product Summary
The EPM7128STI100-10N is a high-density, high-performance PLD. It is based on Altera’s second-generation MAX architecture.
Parametrics
Absolute maximum ratings: (1)Supply voltage:–2.0V to 7.0V; (2)DC input voltage:–2.0V to 7.0V; (3)DC output current, per pin:–25mA to 25mA; (4)Storage temperature:–65℃ to 150℃; (5)Ambient temperature:–65℃ to 135℃; (6)Junction temperature:Ceramic packages, under bias:150℃, PQFP and RQFP packages, under bias:135℃.
Features
Features: (1)Includes 5.0-V MAX 7000 devices and 5.0-V ISP-based MAX 7000S devices; (2)Built-in JTAG boundary-scan test (BST) circuitry in MAX 7000S devices with 128 or more macrocells; (3)Complete EPLD family with logic densities ranging from 600 to 5,000 usable gates (see Tables 1 and 2); (4)5-ns pin-to-pin logic delays with up to 175.4-MHz counter frequencies (including interconnect); (5)PCI-compliant devices available.

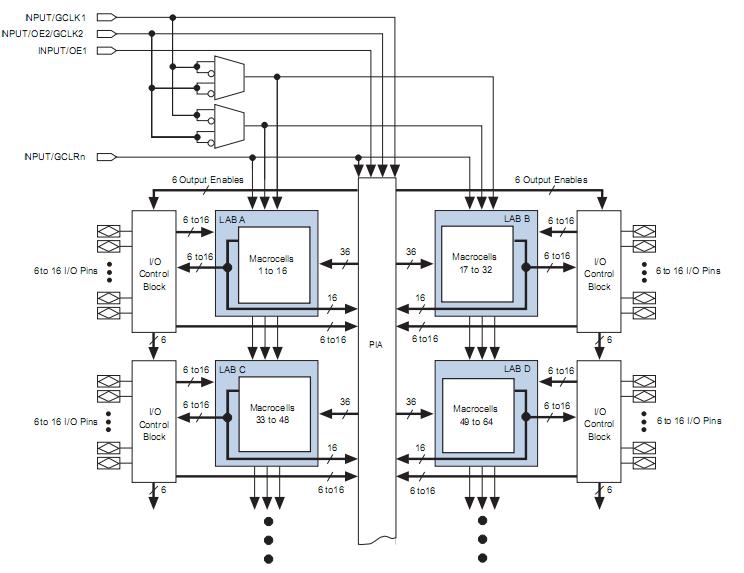

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

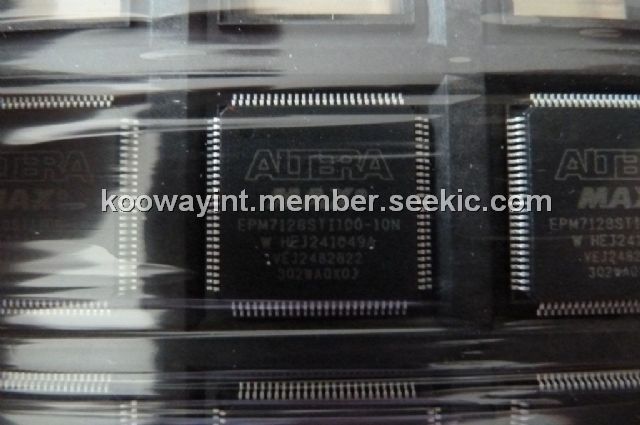

 EPM7128STI100-10N |
|
IC MAX 7000 CPLD 128 100-TQFP |
Data Sheet |
|
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
 |
EPM7032AE |
Other |
|
Data Sheet |
Negotiable |
|
||||||
 |
EPM7032LC44-6 |
|
IC MAX 7000 CPLD 32 44-PLCC |
Data Sheet |
Negotiable |
|
||||||
|
EPM7032LC44-7 |
|
IC MAX 7000 CPLD 32 44-PLCC |
Data Sheet |
Negotiable |
|
||||||
 |
EPM7032QC44-15 |
|
IC MAX 7000 CPLD 32 44-PQFP |
Data Sheet |
Negotiable |
|
||||||
|
EPM7064LC44-15 |
|
IC MAX 7000 CPLD 64 44-PLCC |
Data Sheet |
|
|
||||||
 |
EPM7064AETC44-7 |
|
IC MAX 7000 CPLD 64 44-TQFP |
Data Sheet |
|
|
||||||
