Product Summary

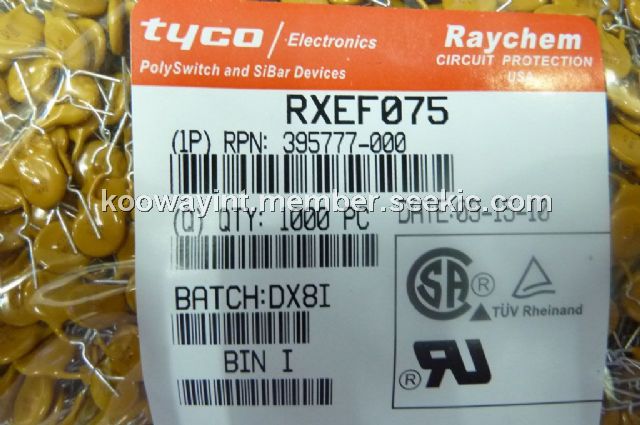

The RXEF075 is a PolySwitch Resettable Device.

Parametrics

Absolute maximum ratings: (1)Lead material: Tin-plated copper, 0.52mm2 (20AWG), 0.81mm (0.032in.); (2)Soldering characteristics: Solderability per ANSI/J-STD-002 Category 3; (3)Solder heat withstand: per IEC-STD 68-2-20, Test Tb, Method 1A, Condition B, can withstand: 10 seconds at 260℃ ± 5℃; (4)Insulating material: Cured, flame-retardant epoxy polymer; meets UL 94V-0; (5)Operation temperature: -40℃ to 85℃.

Features

Features: (1)RoHS compliant; (2)Broadest range of radial-leaded resettable devices available in the industry; (3)Current ratings from 50mA to 15A; (4)Voltage ratings from 6V (computer and electronic applications) to 99V; (5)Agency recognition : UL, CSA, TUV; (6)Fast time-to-trip; (7)Low resistance.

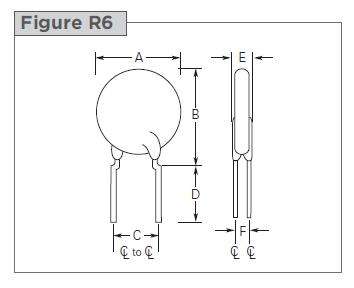

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
RXEF075
RXEF075
TE Connectivity / Raychem
PTC Resettable Fuses Radial Lead .75A 72V 40A Imax
Data Sheet
0-1: $0.22
1-10: $0.20
10-100: $0.19
100-500: $0.14
RXEF075-1
RXEF075-1
TE Connectivity / Raychem
PTC Resettable Fuses .75A 72V 40A Imax
Data Sheet
0-1: $0.27
1-10: $0.25
10-100: $0.22
100-500: $0.20
RXEF075S
RXEF075S
TE Connectivity / Raychem
PTC Resettable Fuses Radial Lead .75A 72V 40A Imax
Data Sheet
0-1: $0.23
1-10: $0.20
10-100: $0.18
100-500: $0.15
RXEF075-2
RXEF075-2
TE Connectivity / Raychem
PTC Resettable Fuses Radial Lead .75A 72V 40A Imax
Data Sheet
0-1: $0.24
1-10: $0.23
10-100: $0.22
100-500: $0.20
RXEF075-AP
RXEF075-AP
TE Connectivity / Raychem
PTC Resettable Fuses -
Data Sheet
0-1: $0.24
1-10: $0.23
10-100: $0.22
100-500: $0.20
RXEF075S-1
RXEF075S-1
TE Connectivity / Raychem
PTC Resettable Fuses Radial Lead .75A 72V 40A Imax
Data Sheet
0-1: $0.23
1-10: $0.22
10-100: $0.19
100-500: $0.16
RXEF075V
RXEF075V
TE Connectivity / Raychem
PTC Resettable Fuses .75A 72V 40A Imax
Data Sheet
0-1: $0.23
1-10: $0.20
10-100: $0.18
100-500: $0.15
RXEF075V-2
RXEF075V-2
TE Connectivity / Raychem
PTC Resettable Fuses 40A 72V 2-Pin PolySwitch Reset Dev
Data Sheet
0-1: $0.34
1-10: $0.29
10-100: $0.24
100-250: $0.19
