Product Summary
The SMCJ40A is a Transient Voltage Suppression Diode, which is designed to protect seneitive electronic equipment from voltage transients induced by lighting and other transient voltage events.
Parametrics
Absolute maximum ratings: (1)peak pulse power dissipation at TA=25℃ by 10×1000μs waveform: 1500 W; (2)power dissipation on infinite heat sink at TA=50℃: 6.5 W; (3)peak forward surge current, 8.3ms single half sine wave: 200 A; (4)maximum instantaneous forward voltage at 100A for unidirectional only: 3.5/5.0 V; (5)operating junction and storage temperature range: -65 to 150℃.
Features
Features: (1)halogen-free; (2)RoHS compliant; (3)for surface mounted applicantions to optimize board space; (4)low profile package; (5)built-in strain relief; (6)typical maximum temperature coefficient △VBR=0.1%×VBR@25℃×△T; (7)glass passivated chip junction; (8)1500W peak pulse power capability at 10×1000μs.

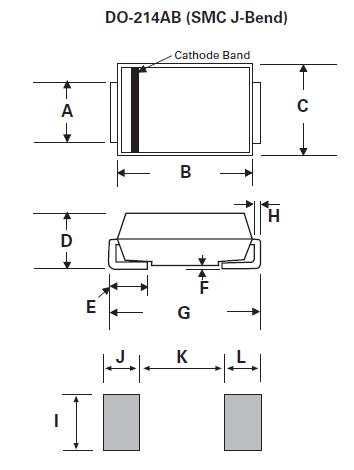

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SMCJ40A/1T |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 1.5KW 40V 5% Unidir |
Data Sheet |
Negotiable |
|
||||||||||||
|
SMCJ40A-7 |
Micro Commercial Components (MCC) |
TVS Diodes - Transient Voltage Suppressors 40V 1500 Watts |
Data Sheet |
Negotiable |
|
||||||||||||
|
SMCJ40A-E3/1T |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 1.5KW 40V 5% Unidir |
Data Sheet |
Negotiable |
|
||||||||||||
 |
SMCJ40A-E3/51T |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 1500W 40V Unidirect |
Data Sheet |
Negotiable |
|
||||||||||||
|
SMCJ40A-E3/57T |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 1500W 40V Unidirect |
Data Sheet |
|
|
||||||||||||
|
SMCJ40A-E3/59T |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 1500W 40V Unidirect |
Data Sheet |
Negotiable |
|
||||||||||||
|
SMCJ40AHE3/9AT |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 1.5KW 40V 5% Unidir |
Data Sheet |
|
|
||||||||||||
|
SMCJ40AHE3/9CT |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 1.5KW 40V 5% Unidir |
Data Sheet |
Negotiable |
|
||||||||||||
